Valla de estacas de metal que forma la máquina

Valla de metal es una nueva solución al enfoque clásico para la construcción de vallas.
Está formado por laminado de chapa de calibre liviano con revestimiento de polímero.

Al ser una solución original de diseño paisajístico, una valla hecha de valla metálica imita una cerca natural hecha de madera y, gracias a su estructura, permite crear una apariencia atractiva en todo el territorio cerrado.

Las ventajas de una valla metálica son la estética, el diseño fuerte, la reducción de peso y el costo asequible. Grupo de empresas "Ruscana Engineering" fabrica máquinas perfiladoras para el perfil de producción "Valla metálica" de cualquier tipo. Si es necesario aumentar la productividad o el producto gama, también estamos listos para ofrecerle una línea para la producción de una valla de estacas metálicas en flujo simple o en opciones de doble flujo. La línea de doble rollo de formación de rollos permite producir dos tipos de perfiles en un equipo, sin reconfiguración.

DISTINCTIVE FEATURES
High production speed.

Variety of metal picked fence types.
For today, there are lots of fence types and design solutions execution of metal picked fence.
Company «Ruscana Engineering» is ready to offer you a standard fence types and develop and manufacture machine to produce original look metal picked fence in accordance with your sketch.

Single stream and double stream roll forming line.
In order to increase performance and save production space, company «Ruscana Engineering» offers you a single stream and double stream roll forming lines.
Double stream roll forming line allows to make 2 types of metal picked fence in one machine without re-adjustment.

Safety.
The rolling mill zone and drive mechanisms are covered with protective covers, which ensures safe working conditions and excludes direct entry of dust, moisture and foreign objects.

Quality components.
Quality electronic, hydraulic and pneumatic components of the leading industry suppliers: spherical, self-centering bearing units (Askubal, Germany); hydraulic and pneumatic components (Made in Italy); electronic components (Omron, Japan).
The shafts of the rolling mill are made of solid rolled steel and is being heat treated and polished, which makes it possible to achieve a high resistance to deflection and to minimize beating.
Volume hardening of profiling rollers, allows to increase their life in 50 times

Competitive price.
The price of equipment is lower than European and North American manufacturers have for similar equipment.

Warranty and post warranty service.

GENERAL INFORMATION П AND М-PROFILE

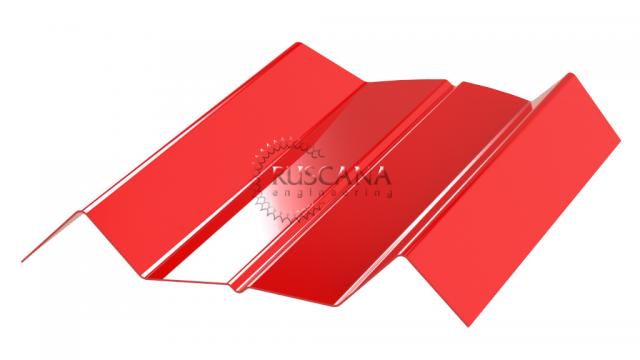

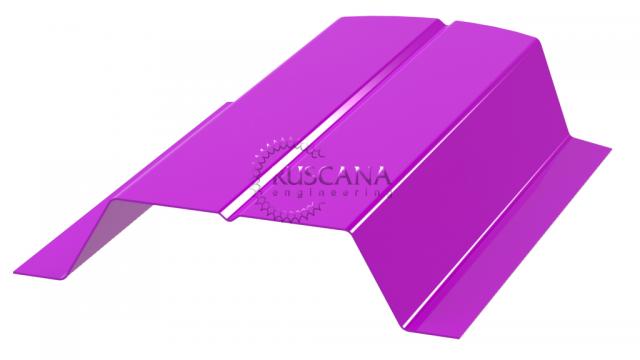

П-PROFILE М-PROFILE
Raw material requirements
Material

Light-gauge galvanized steel with polymer coating: polyester, plastisol
Zinc coating to range 100…275 g/m²
Yield strength 280…320 N/mm²

Coil thickness 0,45 mm…0,7 mm
Coil width 156 mm
General characteristics
Line operating mode manual/automatic
Installed power capacity, no more than 7 kW
Roll forming speed, no more than 20 m/min
Supply voltage at frequency of 50 Hz±0,4Hz 220/380V
Supply voltage at frequency of 60 Hz 230 V 3 phase
Dimensions (LxWxH), no more than  11300х2200х1400 mm
Weight, no more than  2600 kg
Required operation personnel 1-2 persons
Line configuration
1. Decoiler
2. Roll forming section
3. Guillotine
4. Receiving table
5. Automatic Control System (ACS)
Download PDF file
GENERAL INFORMATION TRAPEZIUM AND PLANK

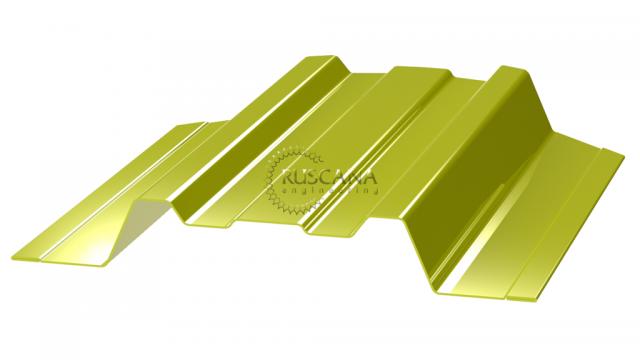

TRAPEZIUM 17 PLANK 19
Specification Trapezium 17 Plank 19
Raw material requirements
Material

Light-gauge galvanized steel with polymer coating: polyester, plastisol
Zinc coating to range 100…275 g/m²
Yield strength 280…320 N/mm²

Coil thickness 0,45 mm…0,7 mm 0,45 mm….0,55 mm
Coil width

156,2±1 mm
139±1 mm

156,2±1 mm
General characteristics
Line operating mode manual/automatic
Installed power capacity, no more than 6 kW
Roll forming speed, no more than 20 m/min
Supply voltage at frequency of 50 Hz±0,4Hz 220/380V
Supply voltage at frequency of 60 Hz 230 V 3 phase
Dimensions (LxWxH), no more than  11300х2200х1400 mm
Weight, no more than  2600 kg
Required operation personnel 1-2 persons
Line configuration
1. Decoiler
2. Roll forming section
3. Guillotine
4. Receiving table
5. Automatic Control System (ACS)
TRAPEZIUM 17 PLANK 19
Download PDF file Download PDF file
