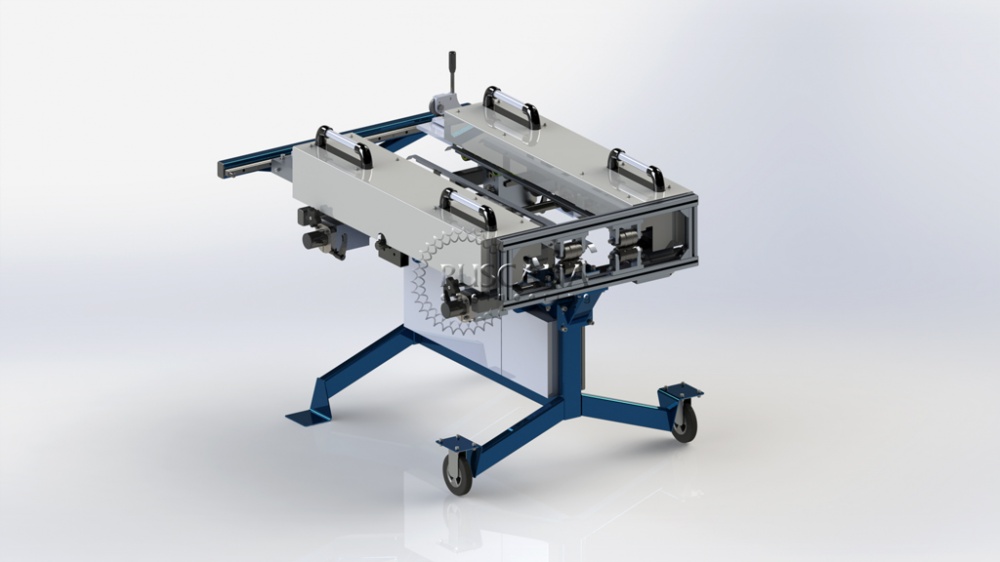

Rodillo de costura en pie que forma la máquina PSR-005

Catalog Equipo de perfilado Rodillo de costura en pie que forma la máquina Rodillo de costura en pie que forma la máquina PSR-005

La máquina formadora de rollos de juntas permanentes PSR-005 fabricada por Ruscana Engineering permite producir paneles de techos de alta calidad con costuras clásicas de diversos anchos y largos de bobina de acero, cobre y zinc-titanio en un sitio de construcción y en una fábrica.

Las características distintivas de Portable Standing Seam Roll anterior PSR 005
3 en 1

Portable Standing Seam Roll Former, modelo PSR-005 tiene muchas ventajas PERO las más importantes son tres de ellas.
Estas tres ventajas determinan la singularidad y la relevancia de PSR-005

1. Panels of various shapes. The roofing panels of a straight and trapezoidal shape can be roll formed with PSR-005 by removing one of the profiling units and roll form panel with another profiling unit.

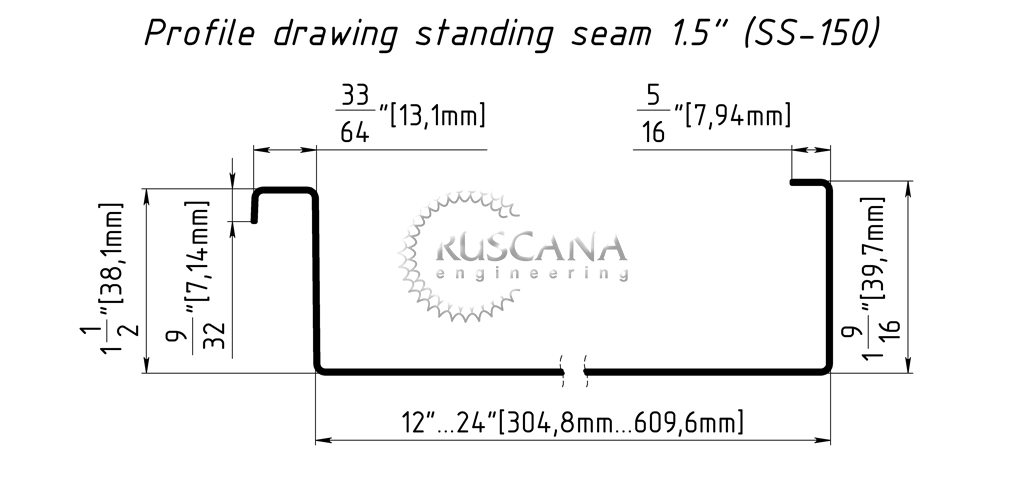

2. 1 inch and 1.5 inch panels in one machine
	PSR 005 allows to produce panels of 2 sizes: 1 inch and 1.5 inch by changing profiling units. It is convenient fast and does not take much time.
	The possibility for changing profiling units (right and left) allows you fast reconfigure machine in a construction site. This does not require highly qualified personnel.

3. Mobility PSR-005 is demounted into 5 parts: a frame № 1, two profiling units № 2,3, a transverse mechanical knife № 4 and embossing roller dies № 5.

It facilitates the transportation and makes it possible to transport this machine in almost any type of vehicle, and also make easy the process of its movement on the construction site.

4. 6 profiling mill stands for high-quality roll forming with automatic adjustment of gaps between roll forming rollers.
	The design of the rollers allows to roll form steel with thickness from 0,45 mm up to 0,6 mm,copper and zinc-titanium from 0,7 mm up to 0,8 mm and get high quality roll formed product. The Adjustment of the gaps for a needed metal thickness is done automatically with the help of a disc spring system. This function allows you to roll form metal without manual readjustment and do it in automatic mode.

5. Roll forming rollers are made from high quality steel.
	This is instrument steel with heat treatment that increase its lifespan in almost twice.

6. High roll forming speed and good quality of finished products.Roll forming speed up to 12 m/min

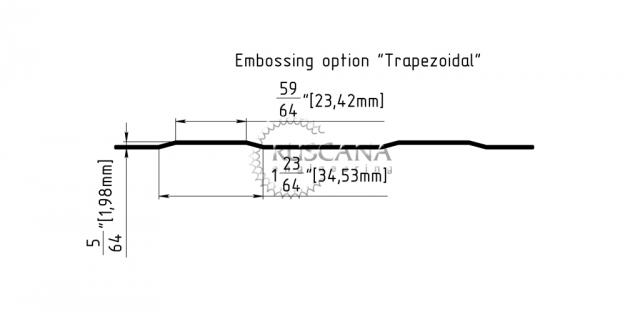

7.Set of embossing roller dies "Trapezoidal" or "Half round (option)".

Decorative embossing provide roof panels additional rigidity and aesthetic appearance.
8.Protective covers of the profile units with handles for carrying.	9.Transverse knife

Protective covers prevent the ingress of dust or foreign objects into the roll forming area. Four convenient handles make it easy to carry or replacement of profiling units with the help of two or four people.	Quality cutting of the required length profile.

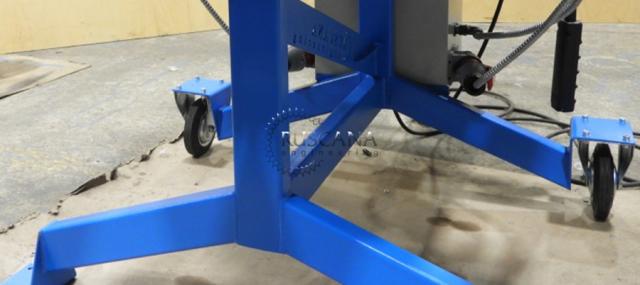

10. Wheels	11.Decoiler

Allows without any problems to move the machine in the construction site.	Serves for feeding metal strip of different widths to machine.

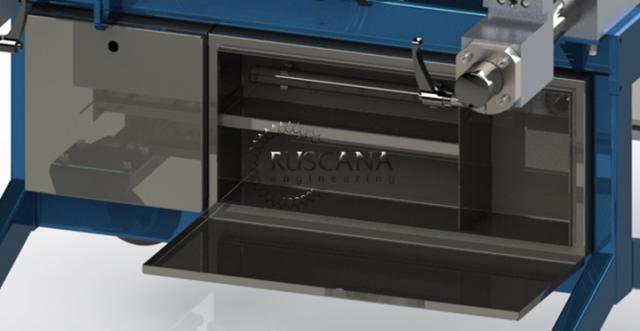

12.Box for storing spare parts and tools.
	The necessary tool kit is always at hand.

General characteristics:

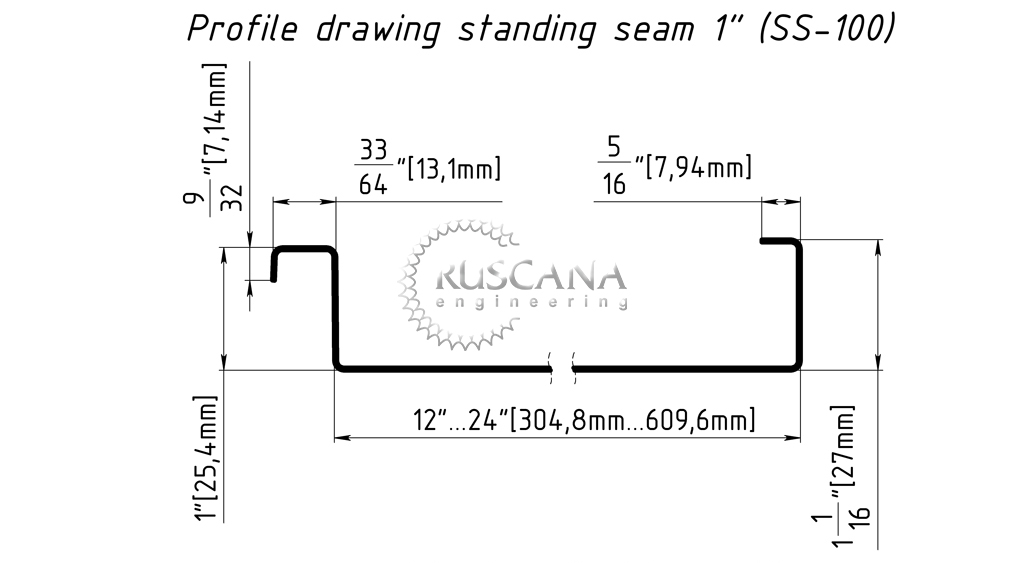

Seam height – 1" ( 25,4 mm)
Installed power capacity, no more than - 0,75 kW
Power supply voltage at frequency of 50 Hz, 220 V
( or 60 Hz, 115/208-230 V for the countries of North America)
Dimensions (LxWxH)- 1850х1100х1120 mm
Weight - 325 kg

Roll forming speed:

No more than 12 m/min

Raw material requirements:
- galvanized steel with mass of zinc coating 100…27 g/m2;
- yield strength 280…320 N/mm2;
- width – 14,9" (379 mm)… 26,9" (684 mm);
- coil thickness – 0,45 mm…0,6 mm;
- copper, aluminum, zinc-titanium thickness – 0,7 mm…0,8 mm

Option:

For autonomous operation of 2 profiling units, it can be equipped with 2 motors.

Configuration:

1. Decoiler «Liner»;
2. Standing seam roll forming machine PSR-005;
3. Transverse knife;
4. Embossing rolling dies.
5. Roller base receiving table (option)

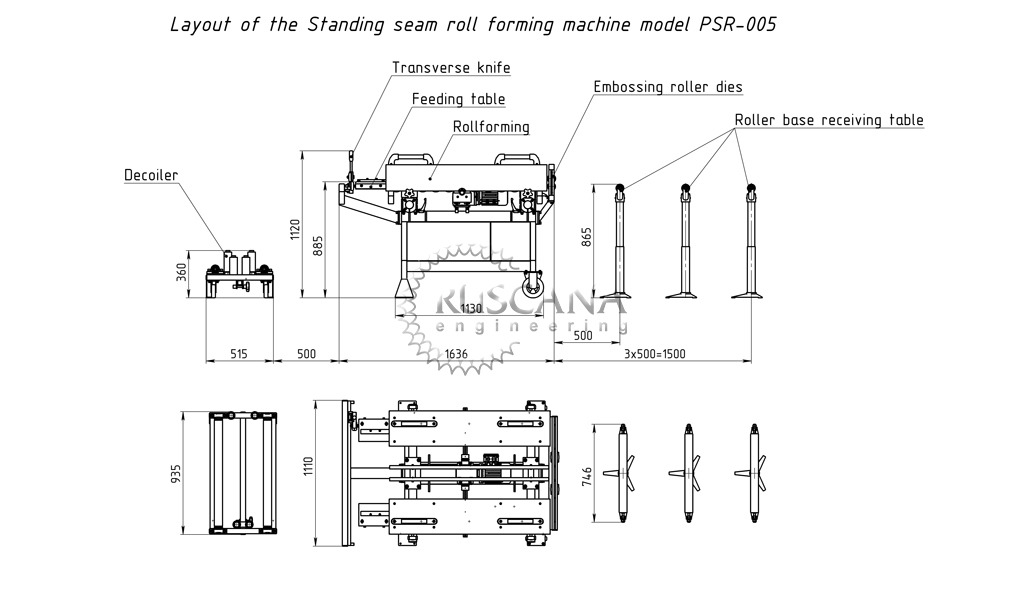

Layout
